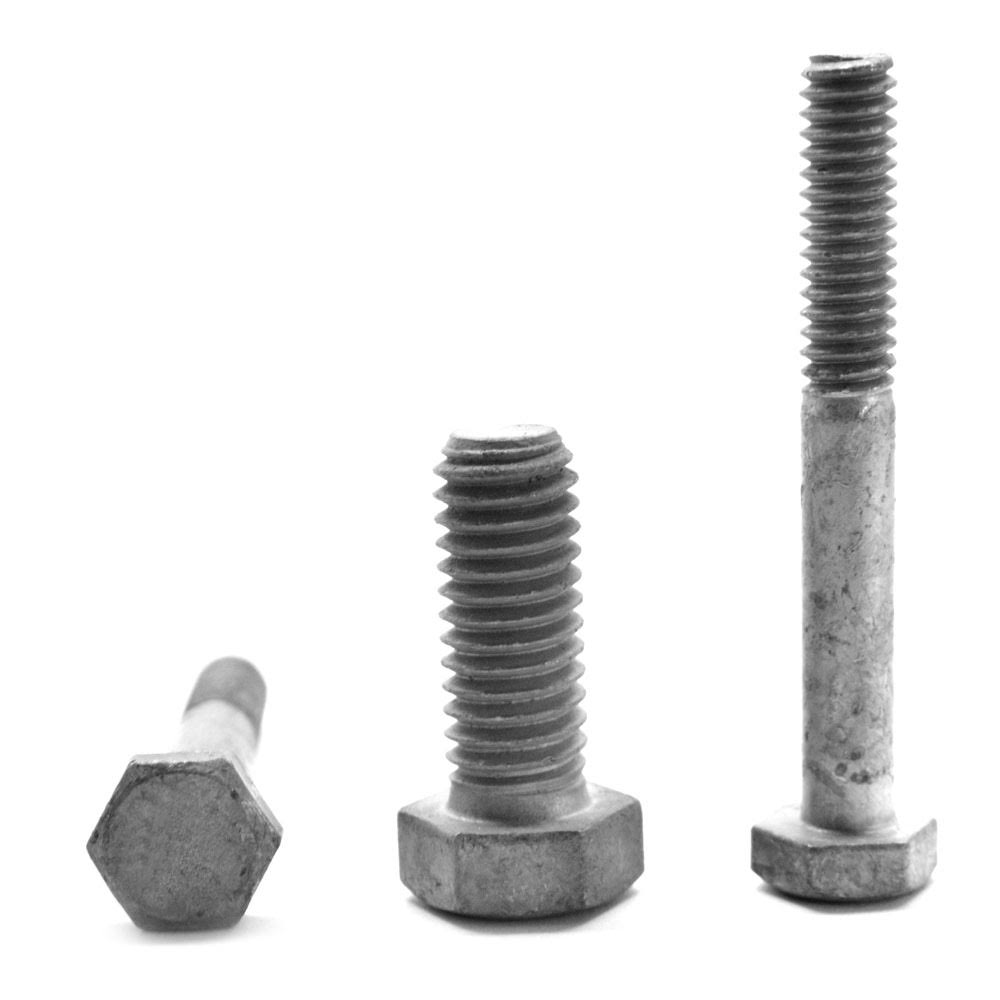

7/8x22-9 x 4x22 Coarse Thread A307 Grade A Hex Bolt Low Carbon Steel Hot Dip Galvanized P952442
Sale price
$29.99
Regular price $92.29
Skip to product information
Part #: 0000-130178. Buy as few as 60 pcs. Discounts on larger quantities. PRODUCT SPECIFICATIONS Part #: 0000-130178 Fastener Type: Hex Bolt Size Description: 7/8'-9 x 4' (PT) Diameter/Nominal Size: 7/8' Length: 4' Wrench Size/Across Flats: 1 5/16' (1.285-1.312') Width Across Corners: 1.465-1.516' Head Height: 35/64' (0.531-0.563') Thread Pitch: 9 Thread Pitch Type: Coarse Thread Direction: Right Thread Coverage: Partial System of Measurement: Inch Grade: A (2) Material: Low Carbon Steel Finish: Hot Dip Galvanized Head Type: Hex Drive Type: External Hex Standards Met: A307 Average Piece Weight: 0.8465700 lbs. Hexagonal heads and machine threads used with a nut or in a tapped hole; also known as or machine bolts. Hex bolts are similar to hex cap screws. What is the difference between a hex cap screw and a hex bolt? A hex cap screw has tighter tolerances on the body dimensions and features a chamfered end and a washer face under the bolt head. A hex cap screw is often called a finished hex bolt. Hex bolts have a flat end and lack the washer face under the head. Hex bolts may have an undersize body in longer lengths.
7/8x22-9 x 4x22 Coarse Thread A307 Grade A Hex Bolt Low Carbon Steel Hot Dip Galvanized P952442
Sale price
$29.99
Regular price $92.29
Shipping calculated at checkout.
