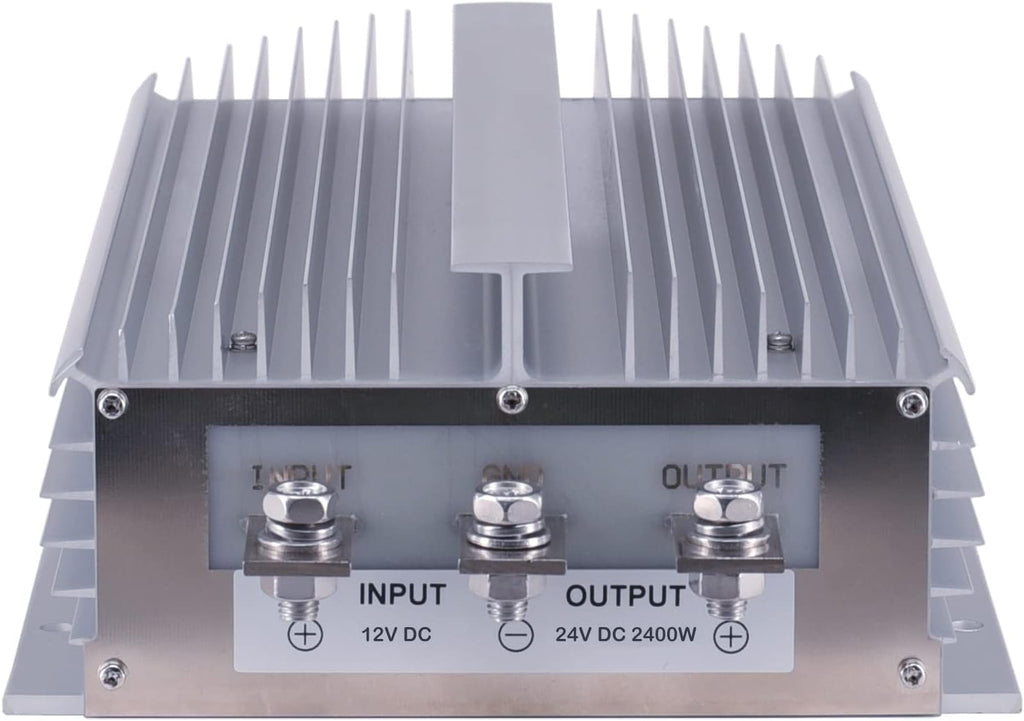

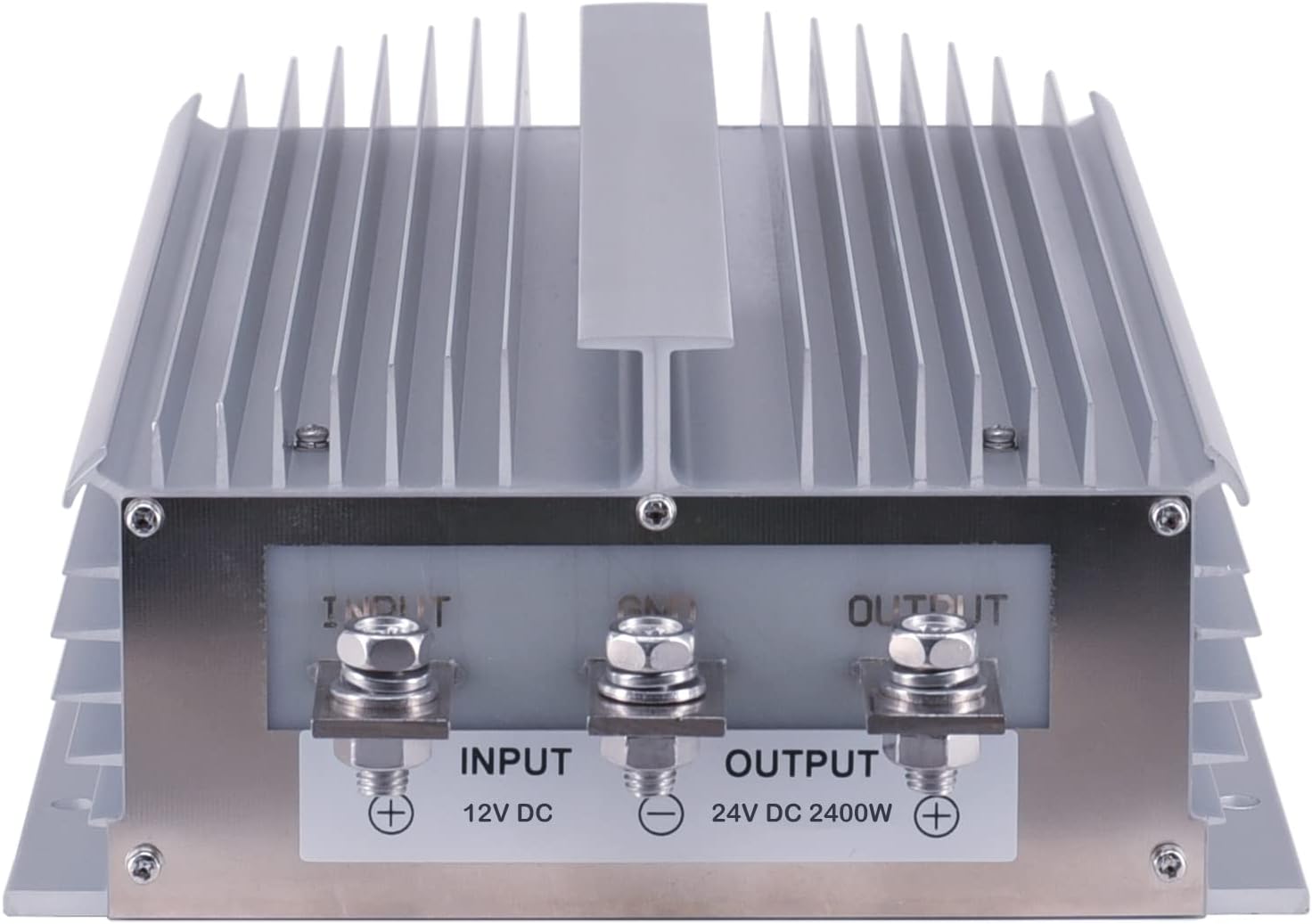

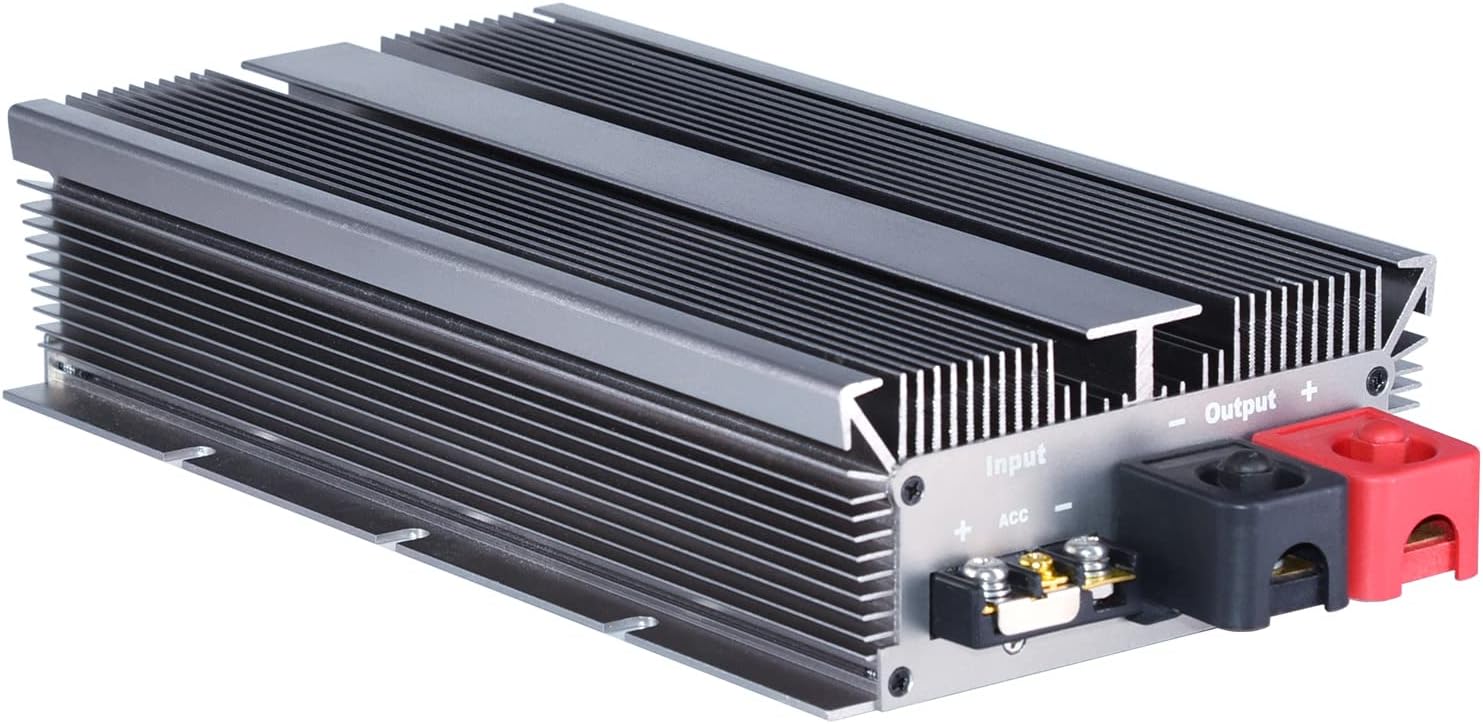

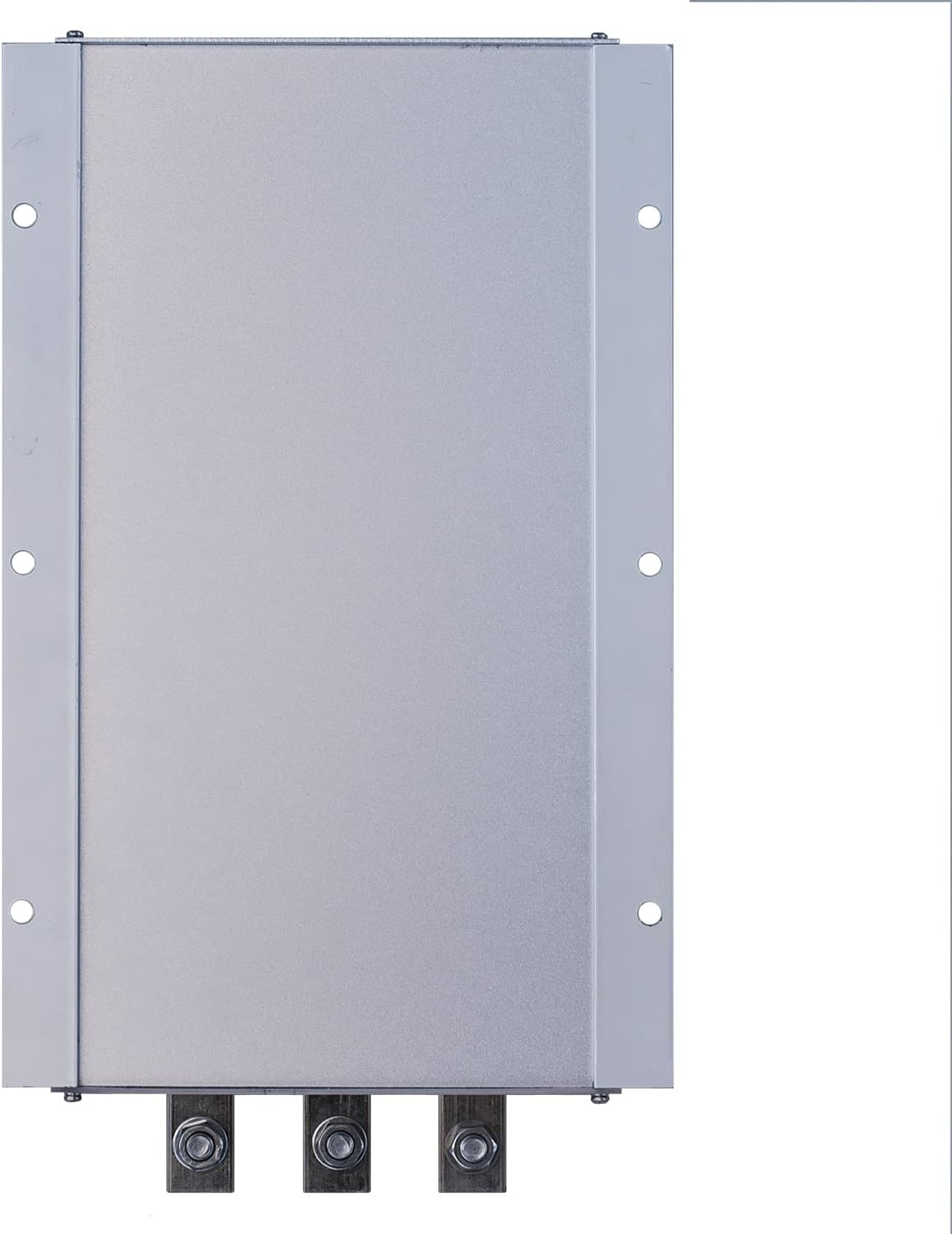

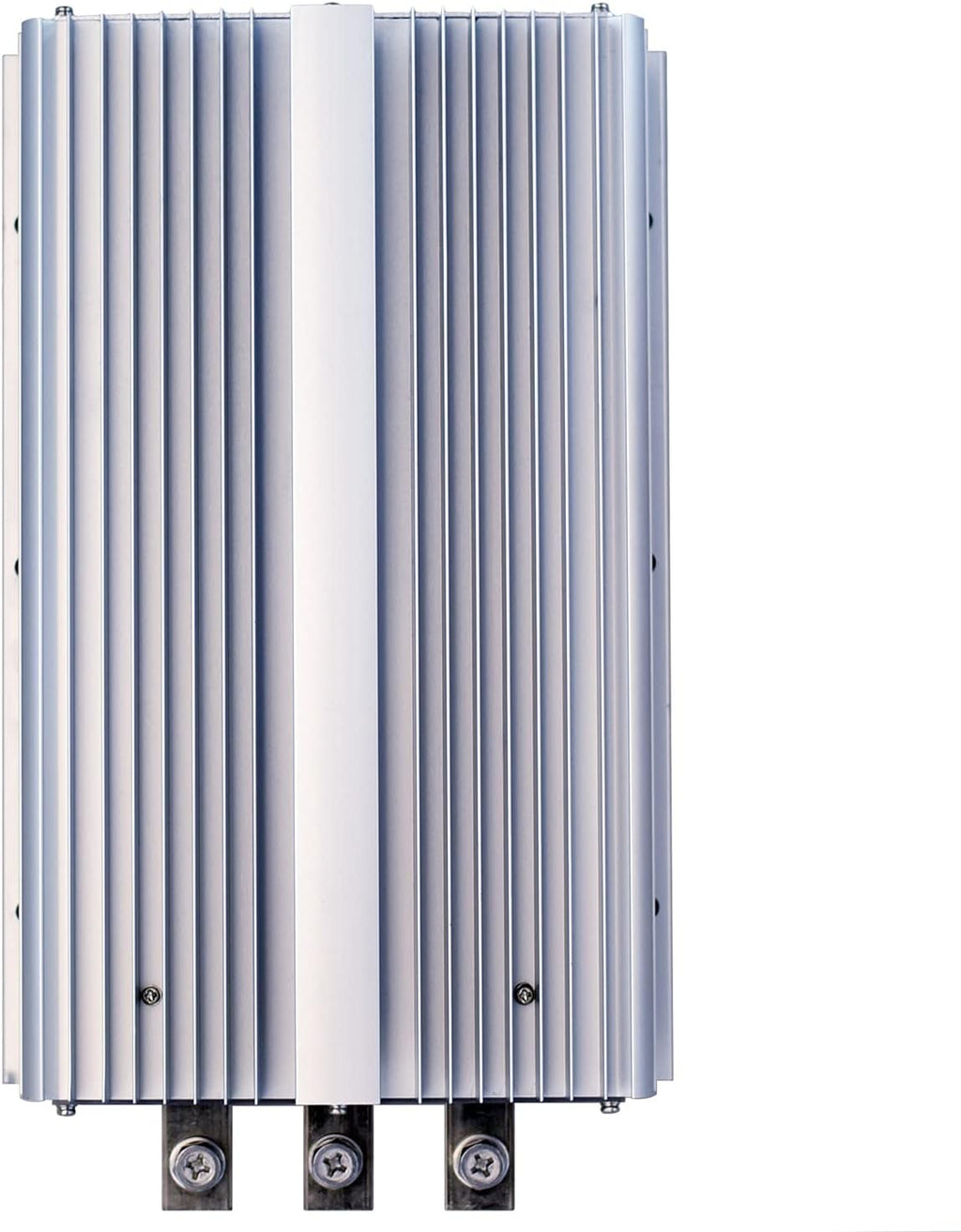

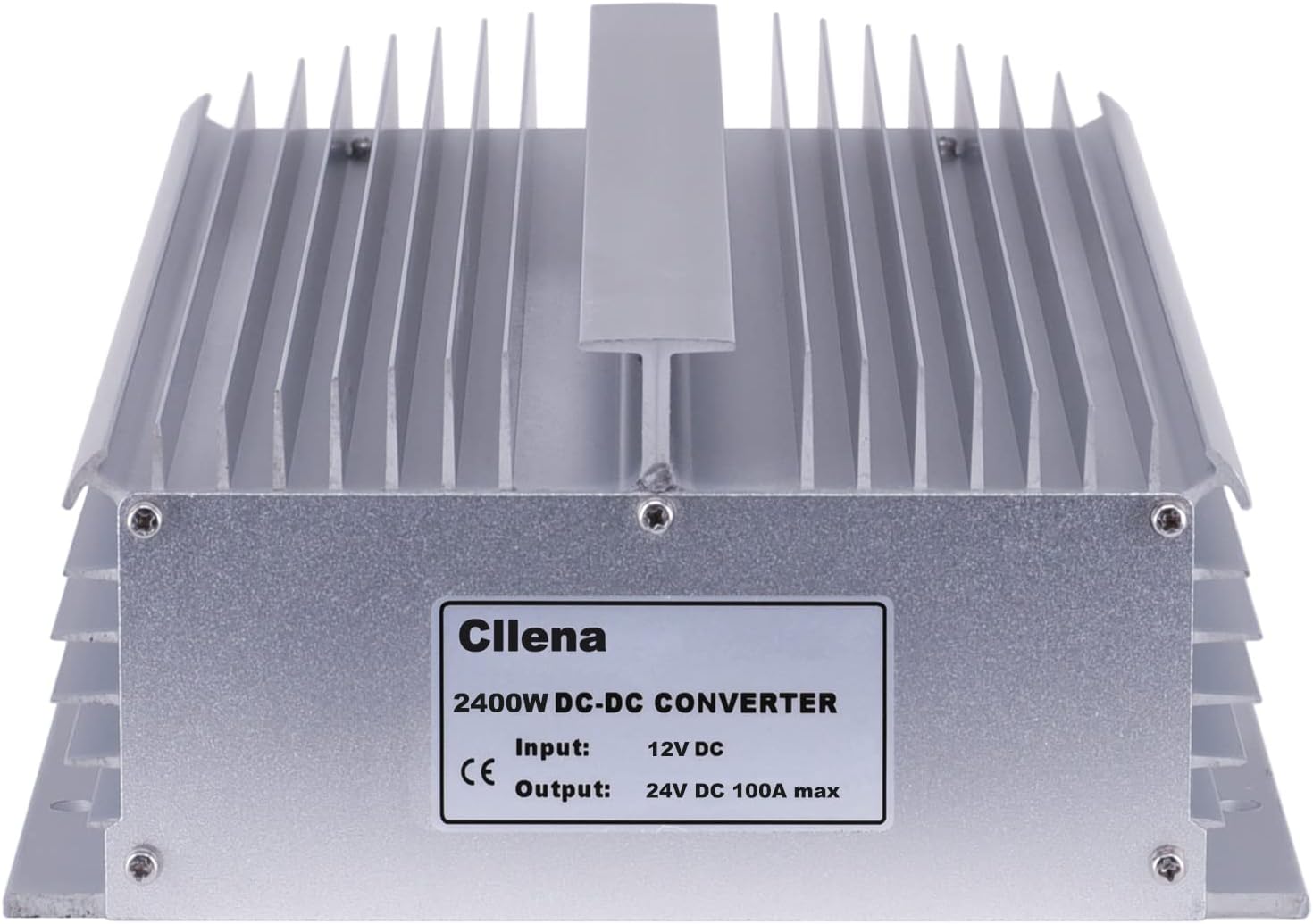

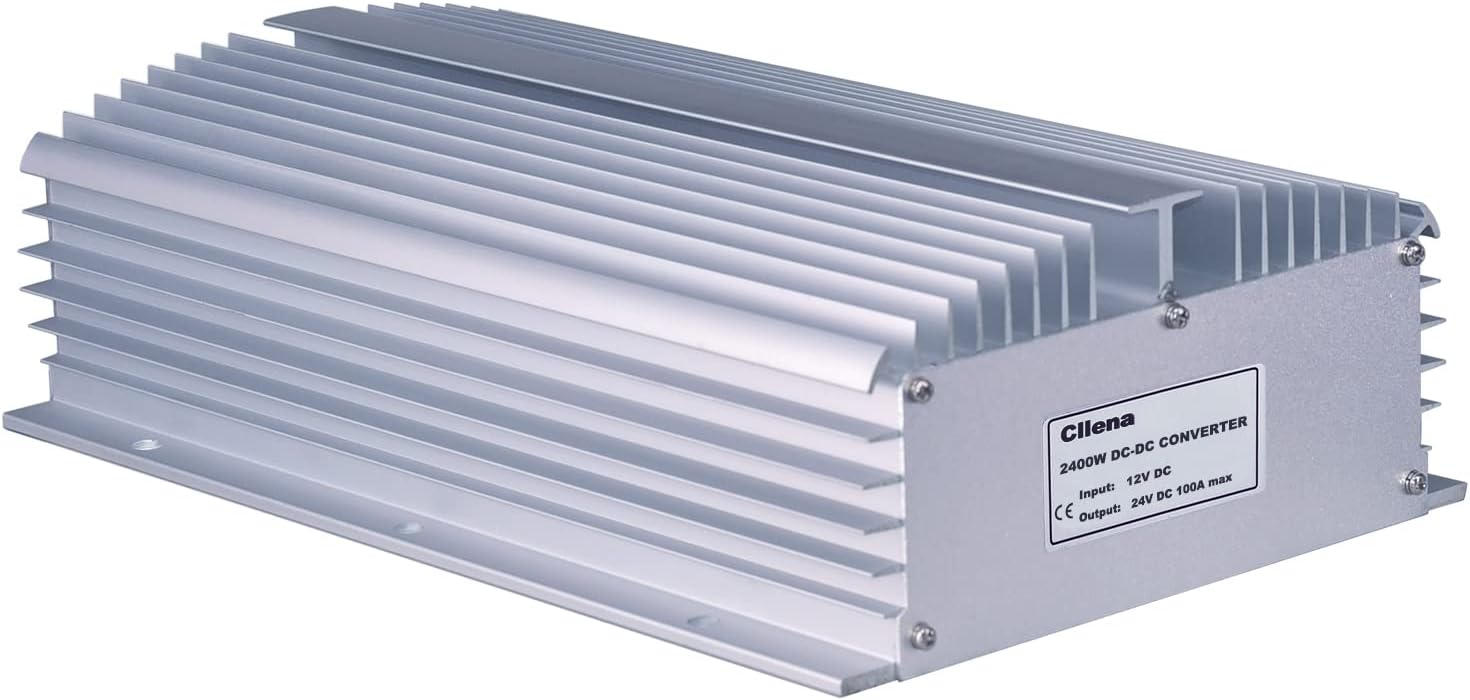

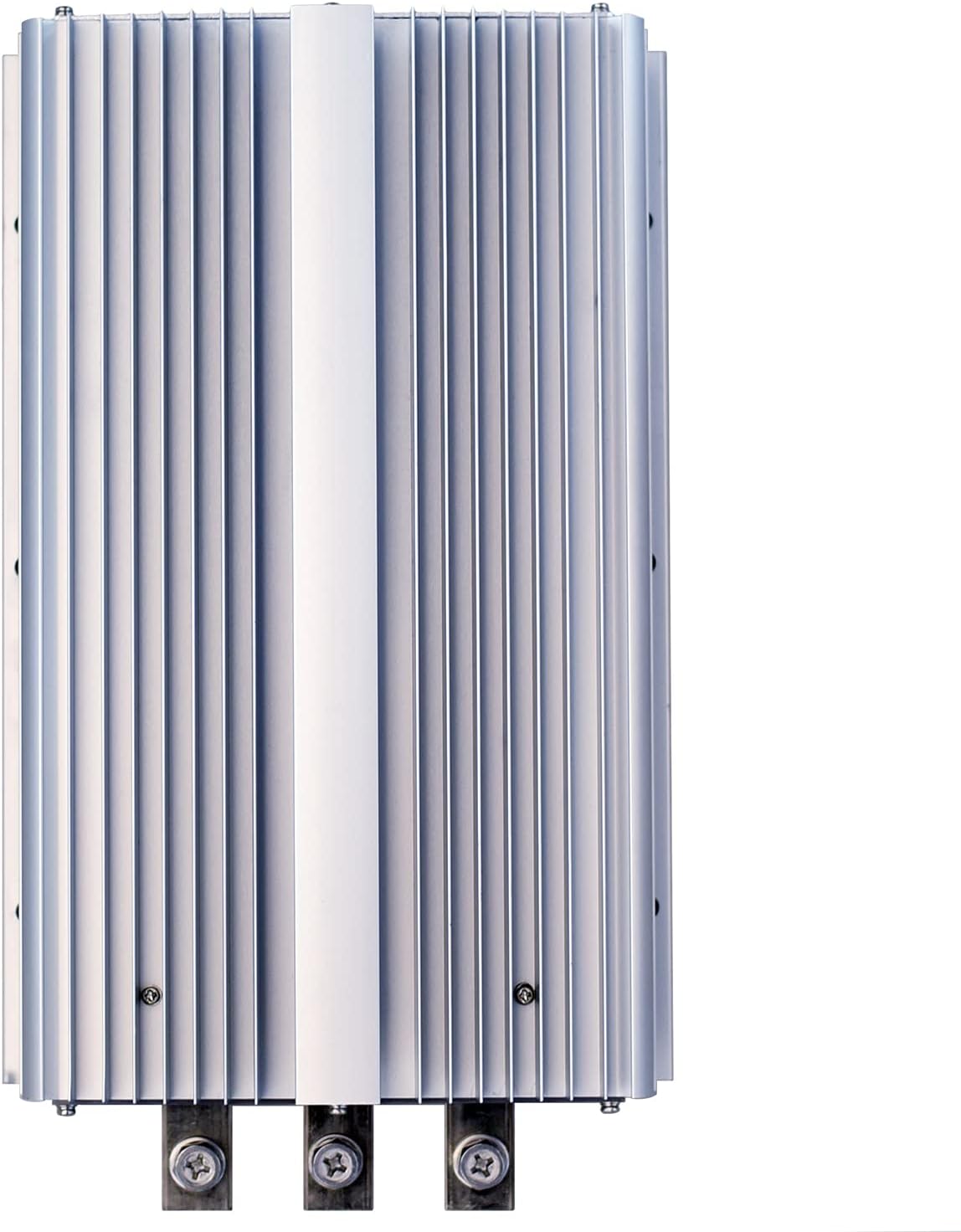

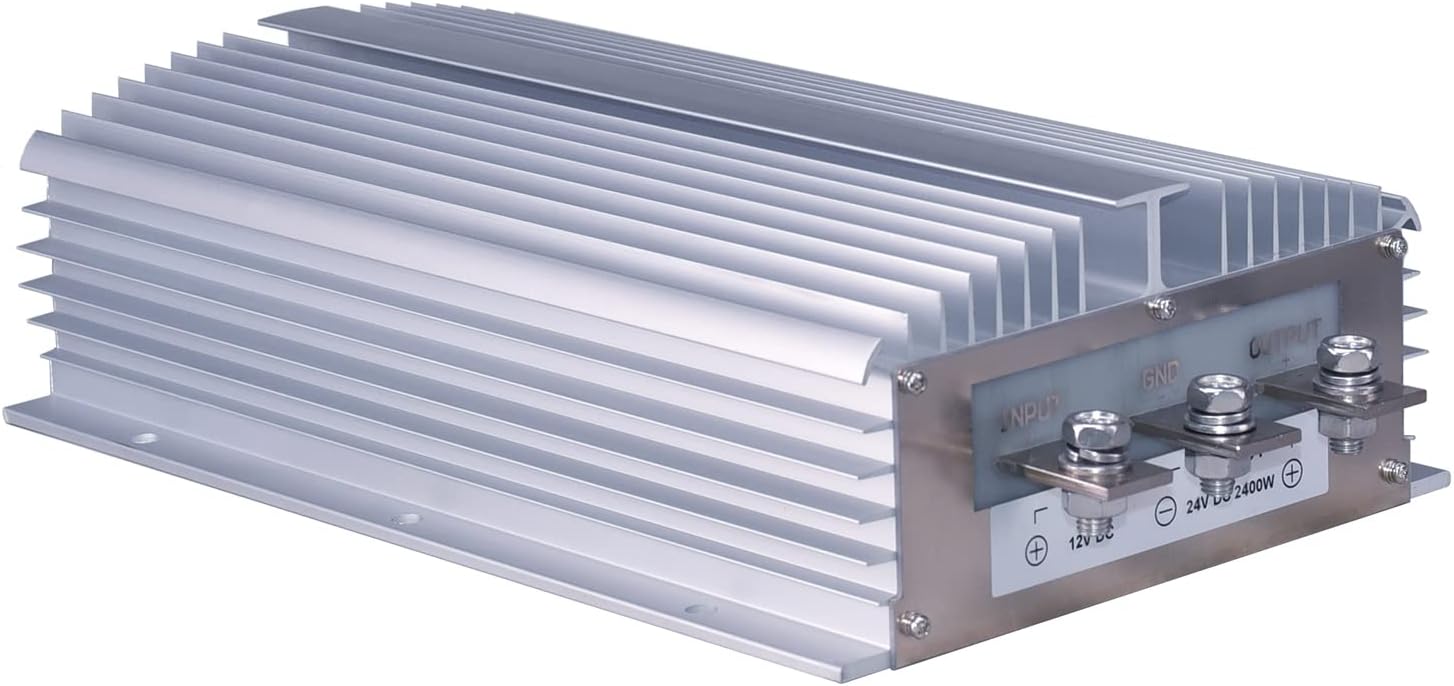

DC/DC 12V to 24V Boost Converter 100A 2400W Step Up Voltage Regulator F934645

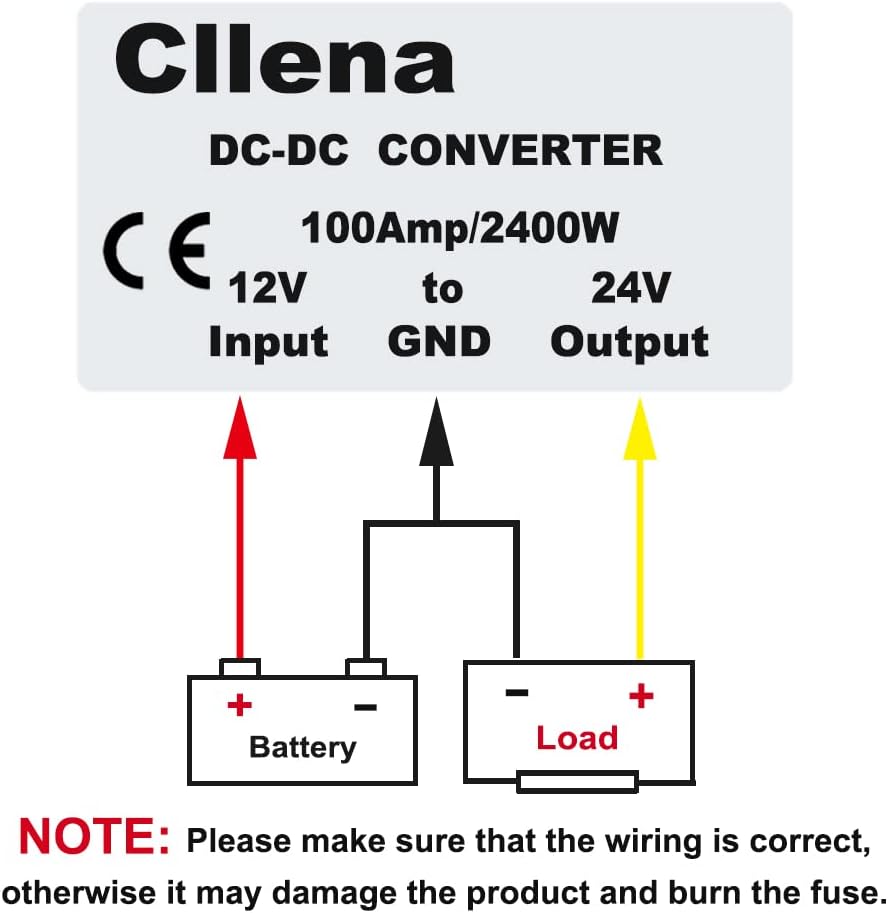

Application:12V DC battery as input power to 24V DC appliances as output load. Reminder: * Keep good air convection. * Input power should be lead acid battery or lithium battery. * This converter can’t charge the battery. * Please install correct fuse in input cable. * Don’t connect Negative or GND to vehicle case or chassis. * Never connect the converter to a solar panel or wind turbine. That will burn the converter. * Be sure of the correct polarity of input and output connection, never reverse the polarity, or it burns the converter. * Please don’t install any meters between converter to battery and converter to loads. * When in doubt, the larger current converter is always a better choice. Specifications: Input Rated Voltage: 12V DC Input Voltage Range: 10V-16 DC Output voltage: 24V DC Output Current: 100 Amp Output Rated Power: 2400W Efficiency: 97% (half load); 95% (full load) Ripple: 200mVp Line Regulation: ±0.2% Load Regulation: ±0.2% Voltage Accuracy: ±1.5% Enclosures: IP68 Case Operating Temperature: -40~85°C Total Size: 300*195*90mm(L*W*H) Weight: 6kg Features: 1. 100% full power and stable current output, non-isolated module. 2. Industry grade DC 12V to DC 24V step up converter, efficiency up to 95%. 3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection. 4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating. 5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours. Package included: 1 x DC 12V-24V 100A Step up Converter
